Diy Over Current and Short Circuit Protection with Schematic Diagram

Analog Google AdSene - High payouts, Bonus 5$ for registration

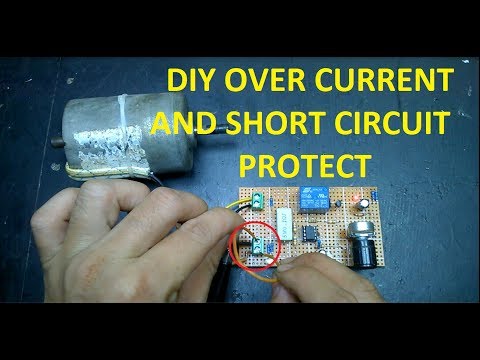

Hi guy today we make Diy Over Current and Short Circuit Protection with schematic diagram. Can adjust the current setting protection
The schematic here:
The list of part
2 domino 2
1 resistor 0.1ohm 5W
2 led
1 portentiometer 10kilo ohm
1 transtor c1815
3 diode 4007
1 relay 5 pin 12V
1 ic LM358
1 button 2pin
2 capacitor 10uF/16v
2 resistor 22kilo ohm
1 resistor 470ohm
1 diode zenner 5.1v
5 resistor 1 kilo ohm
1 resistor 4.7kilo ohm
1 resistor 3.9kilo ohm Subscribe my channel:
